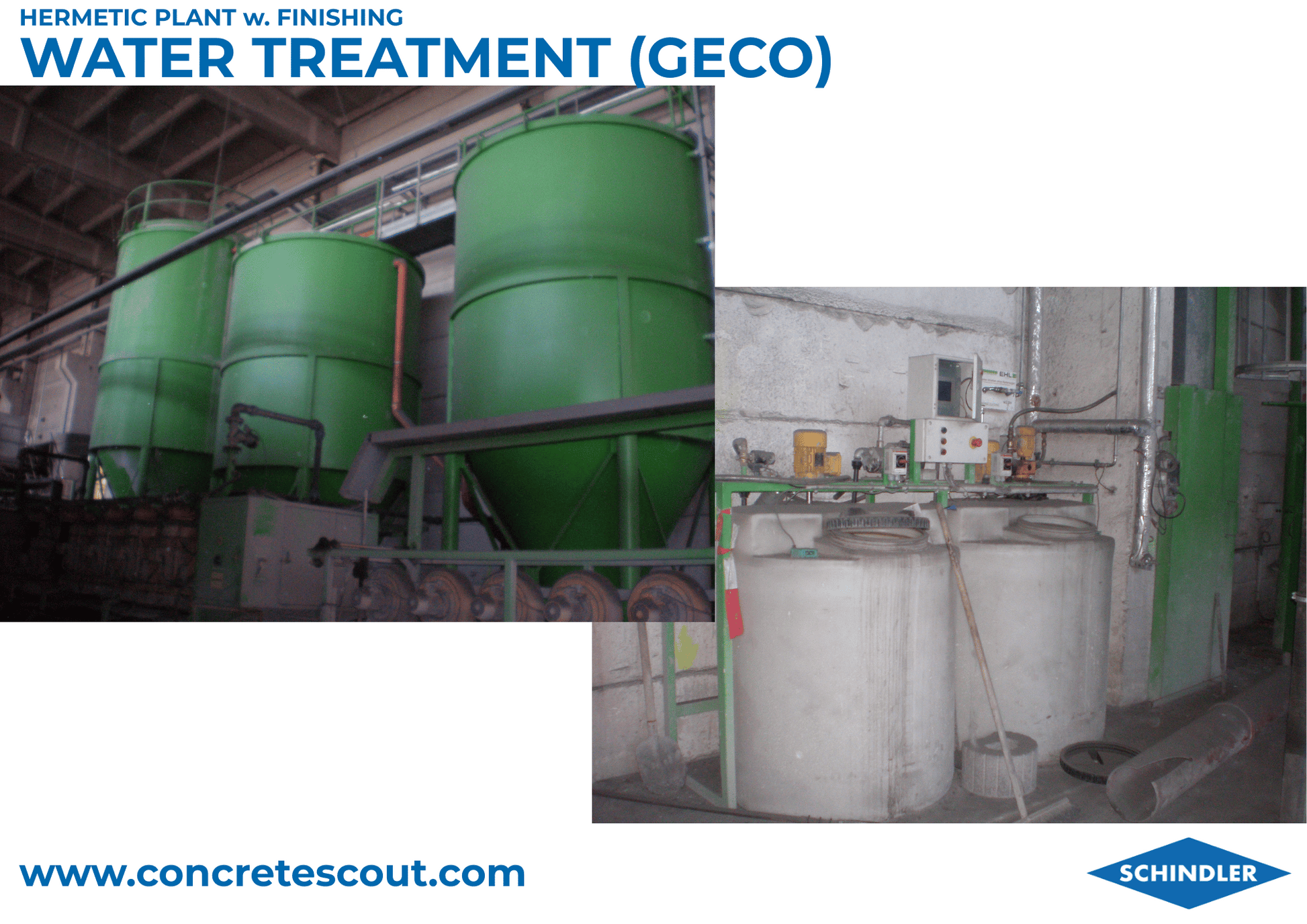

Henke, SR Schindler, Schauer & Haeberle, BM Apparatebau, Geco
Price:
negotiable
Working Width:
600 mm
Location:
Germany
Description:

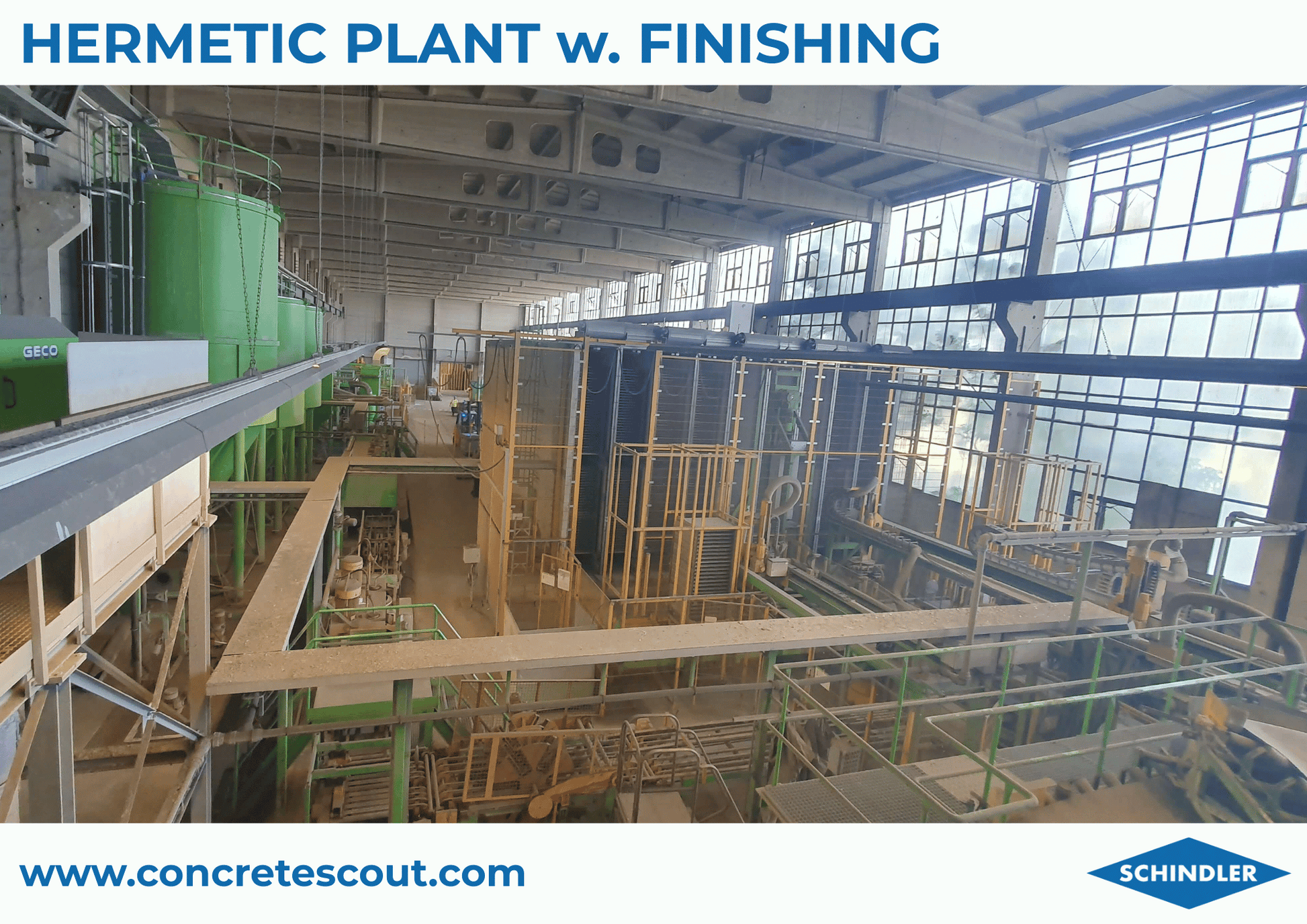

This full hermetic plant comes with a Henke 600 tons press and curing chamber including pallets. The press has the moulds to produce hermetic double layer slabs formats: double 400x400, double 600x400, single 500x500, single 800x400.

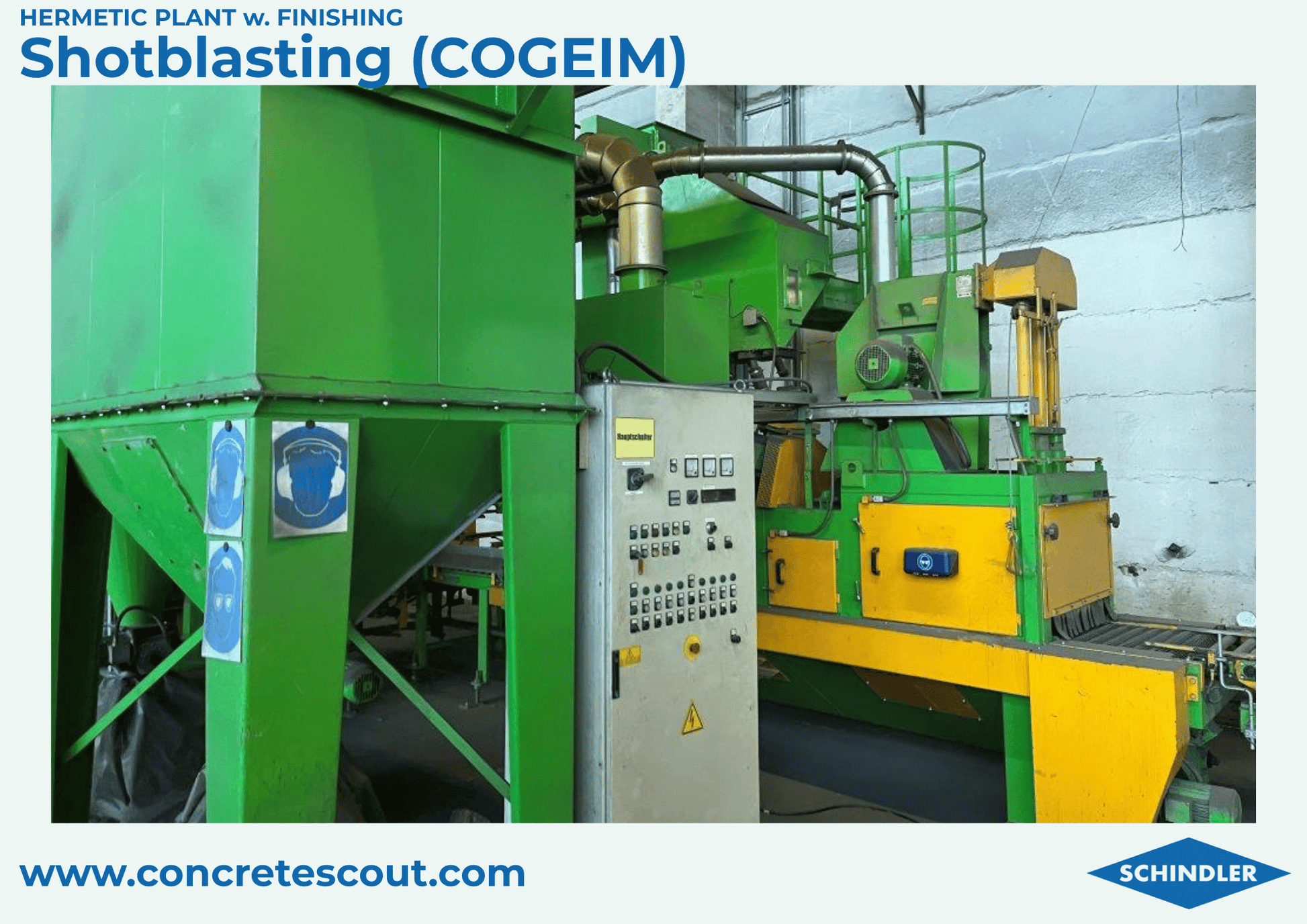

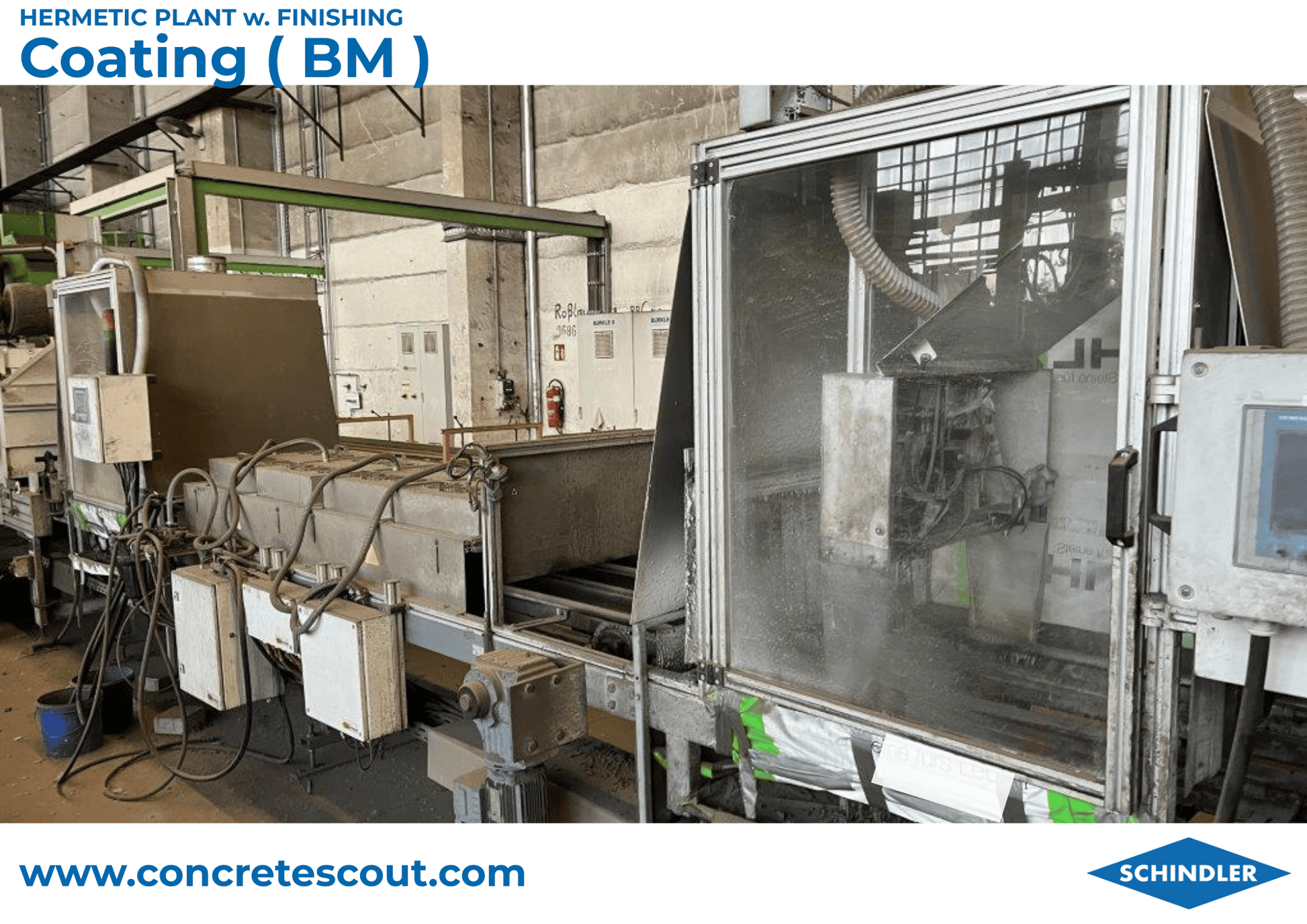

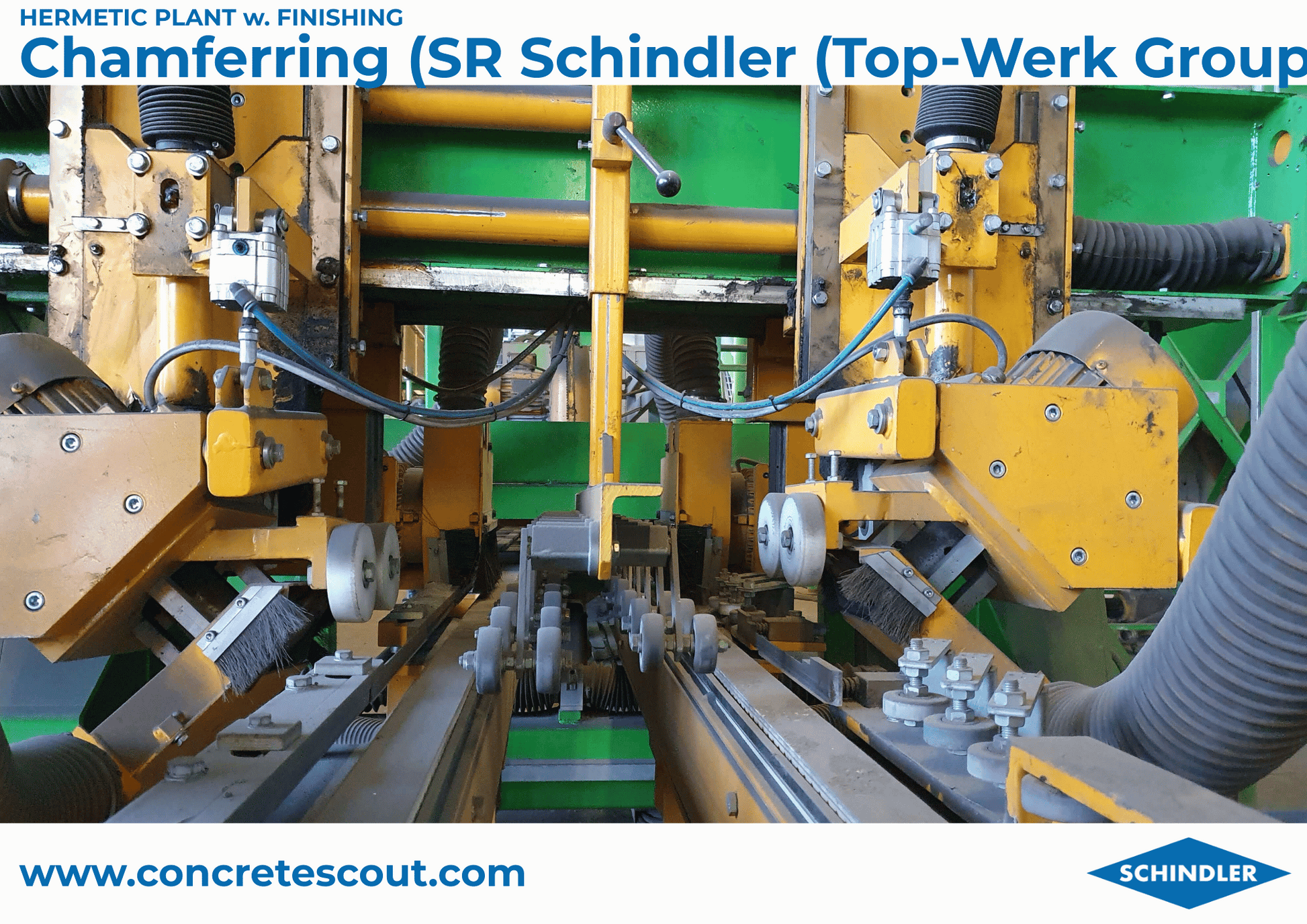

The finishing possibilities are: Direct Washing, Calibrating, Grinding, Chamferring, Shotblasting and Coating.

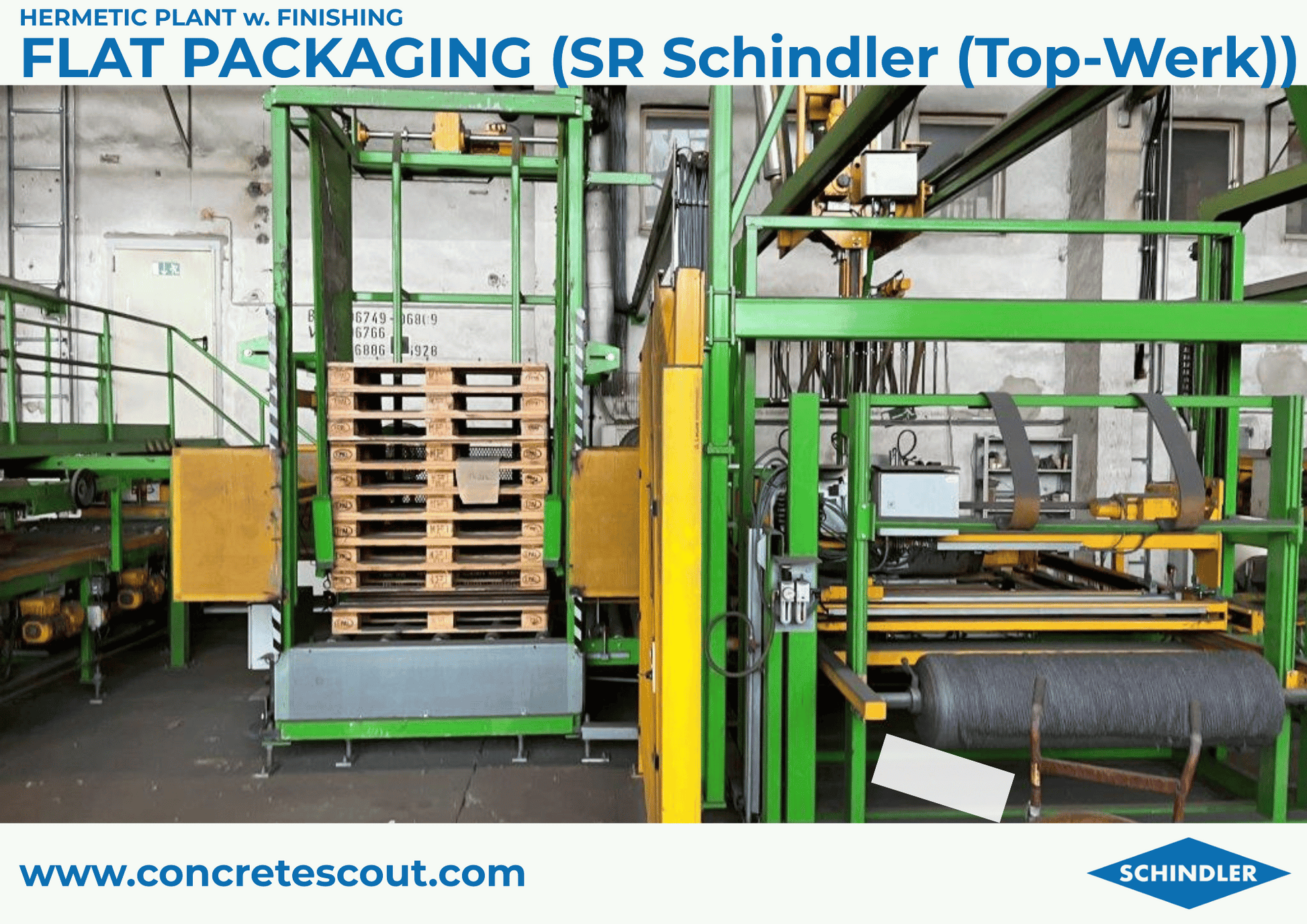

The finished products are automatically packaged horizontally via a cuber.
The plant consists of machines from multiple manufacturers and the machines were built in the 1990s to 2012. The today's plant was installed in 2012 by SR Schindler (Top-Werk Group) and can be visited running without concrete.

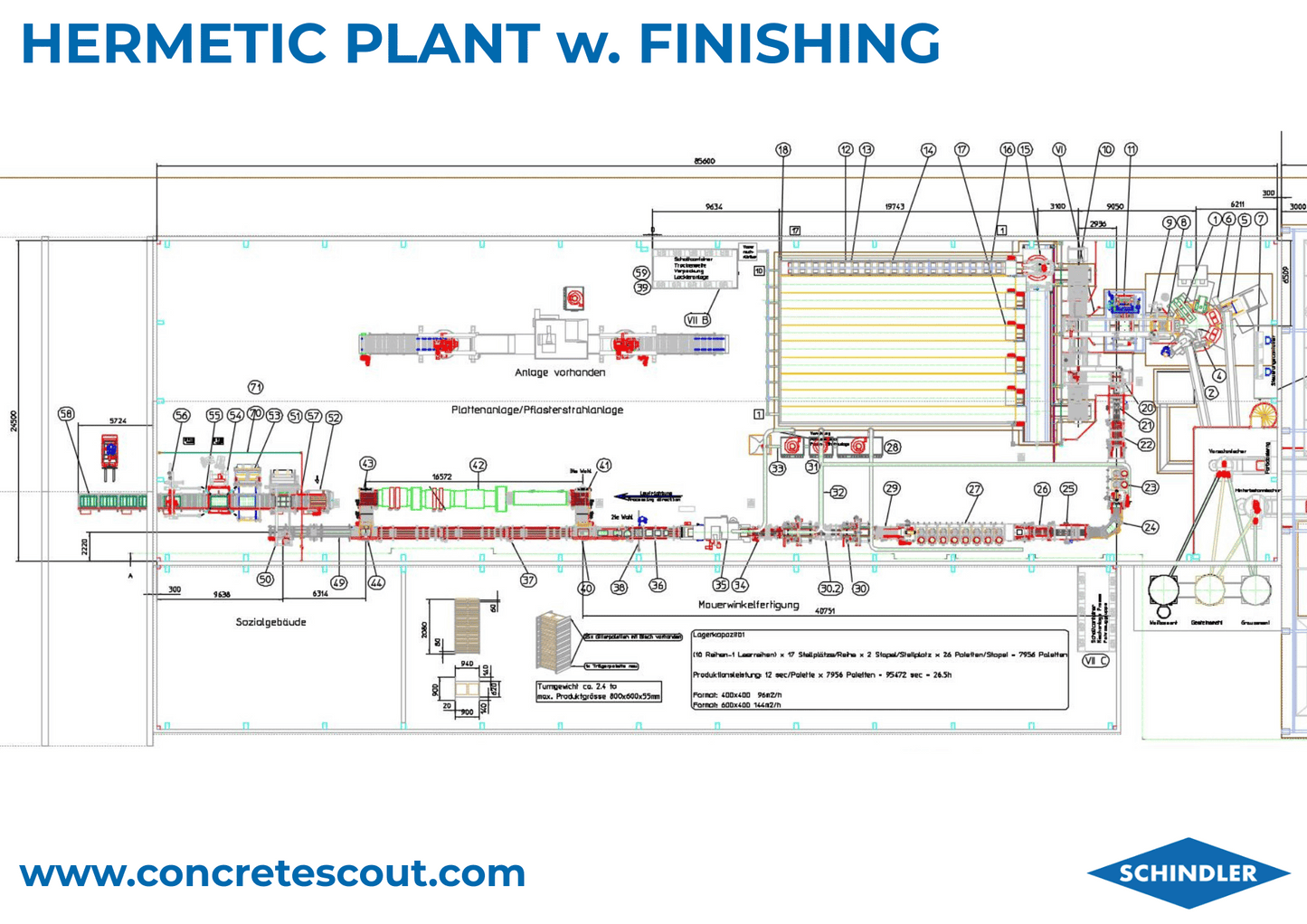

Slab Production
1.

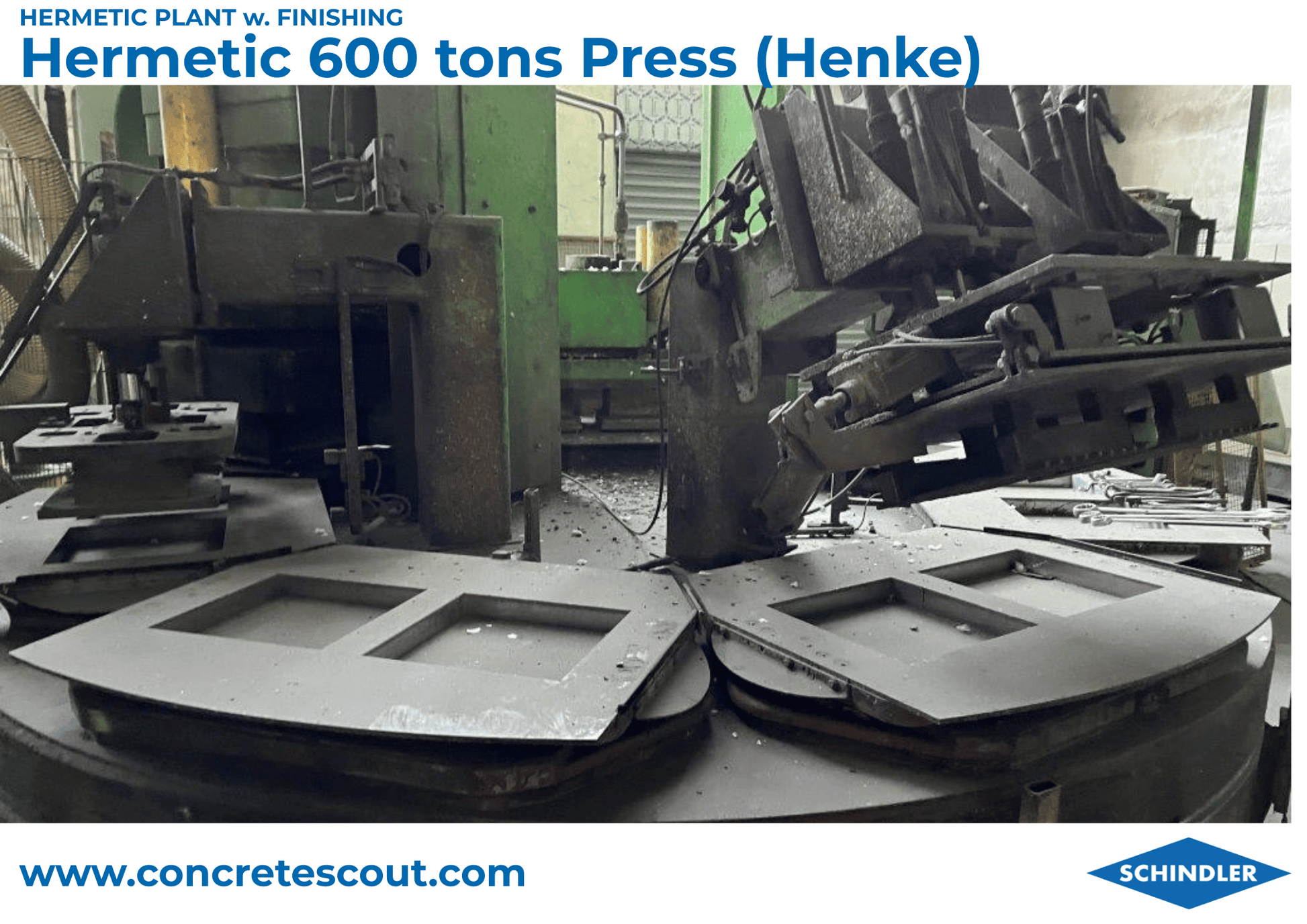

Hermetic Press HENKE 600 tons. Moulds: double 400x400, double 600x400, single 500x500, single 800x400
2.
Doser
4.
First Layer Distributer
5.
Second Layer Feeder
6.
Bucket Conveyor for Second Layer
7.
Electrical Control for Hermetic Press
Handling, Direct Washing, Curing
8.
Slab Carrier
9.
Slab Turner
10.

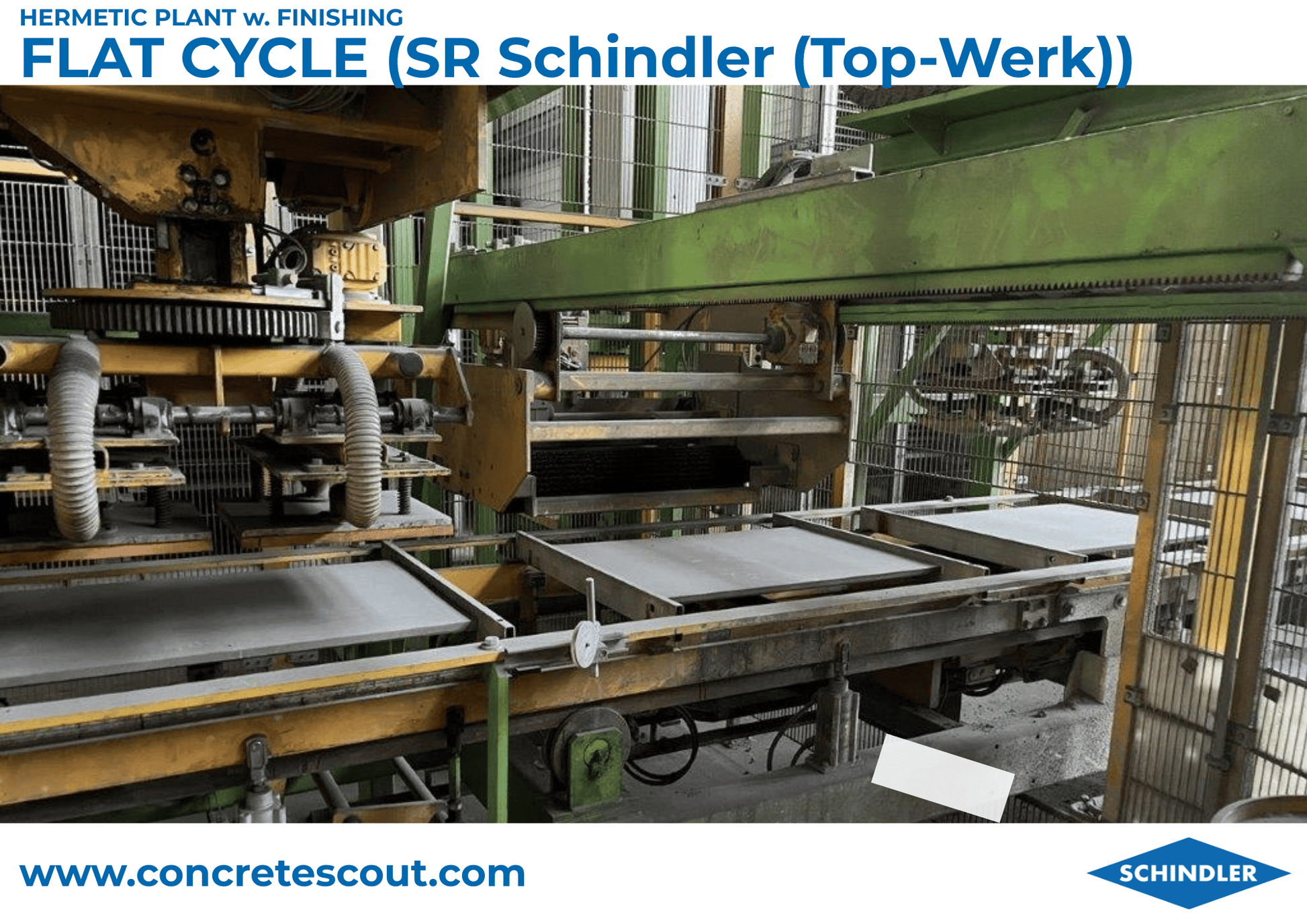

Flat Cycle
10.1
Pallet Oiler
11.
Direct Washing (SR Schindler (Top-Werk Group))
12.
Paletts
15.
Finger Car
16.

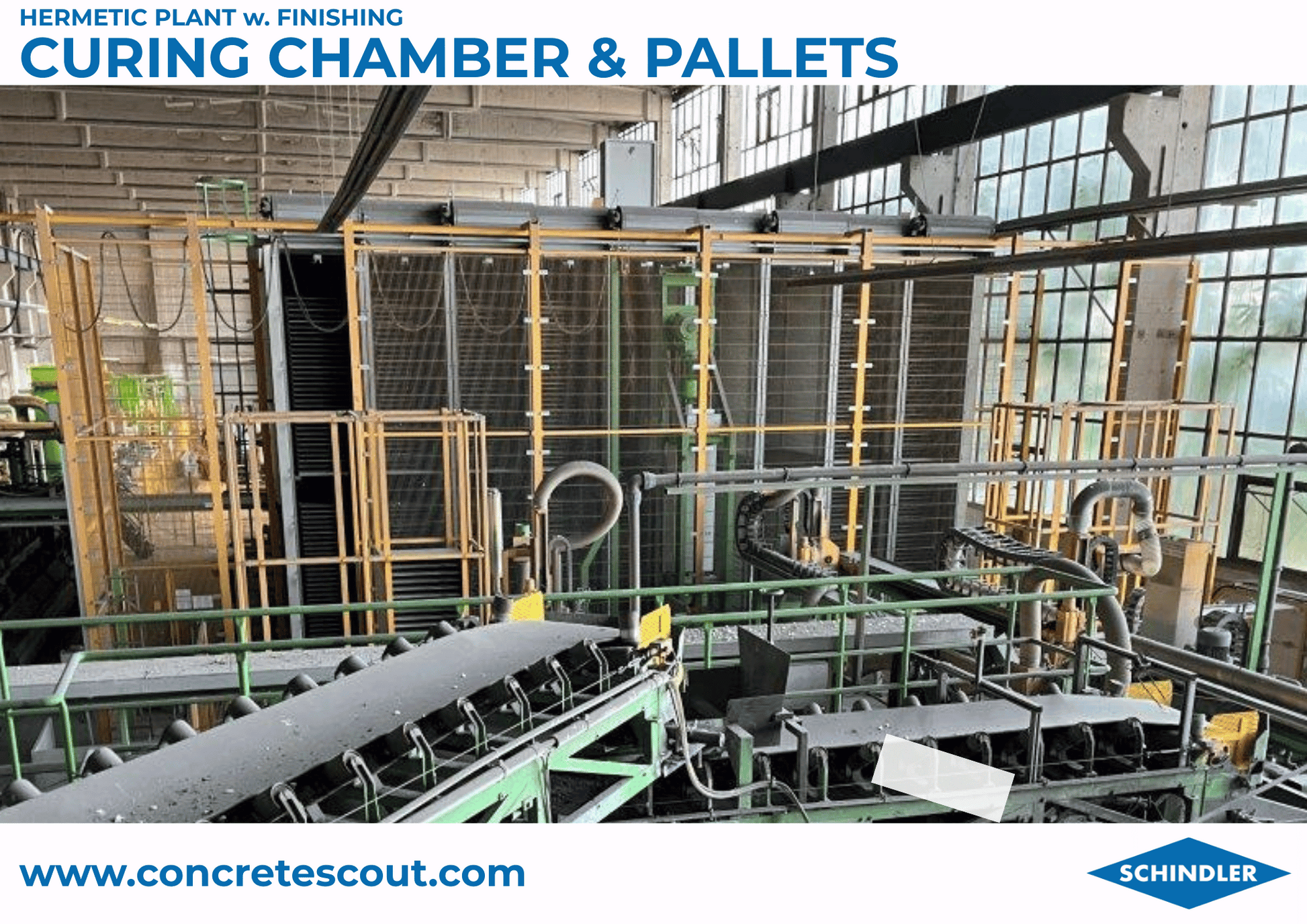

Curing Chamber
17.
Roller Doors
18.
Circulation System
Finishing
20.
Cuber
21.

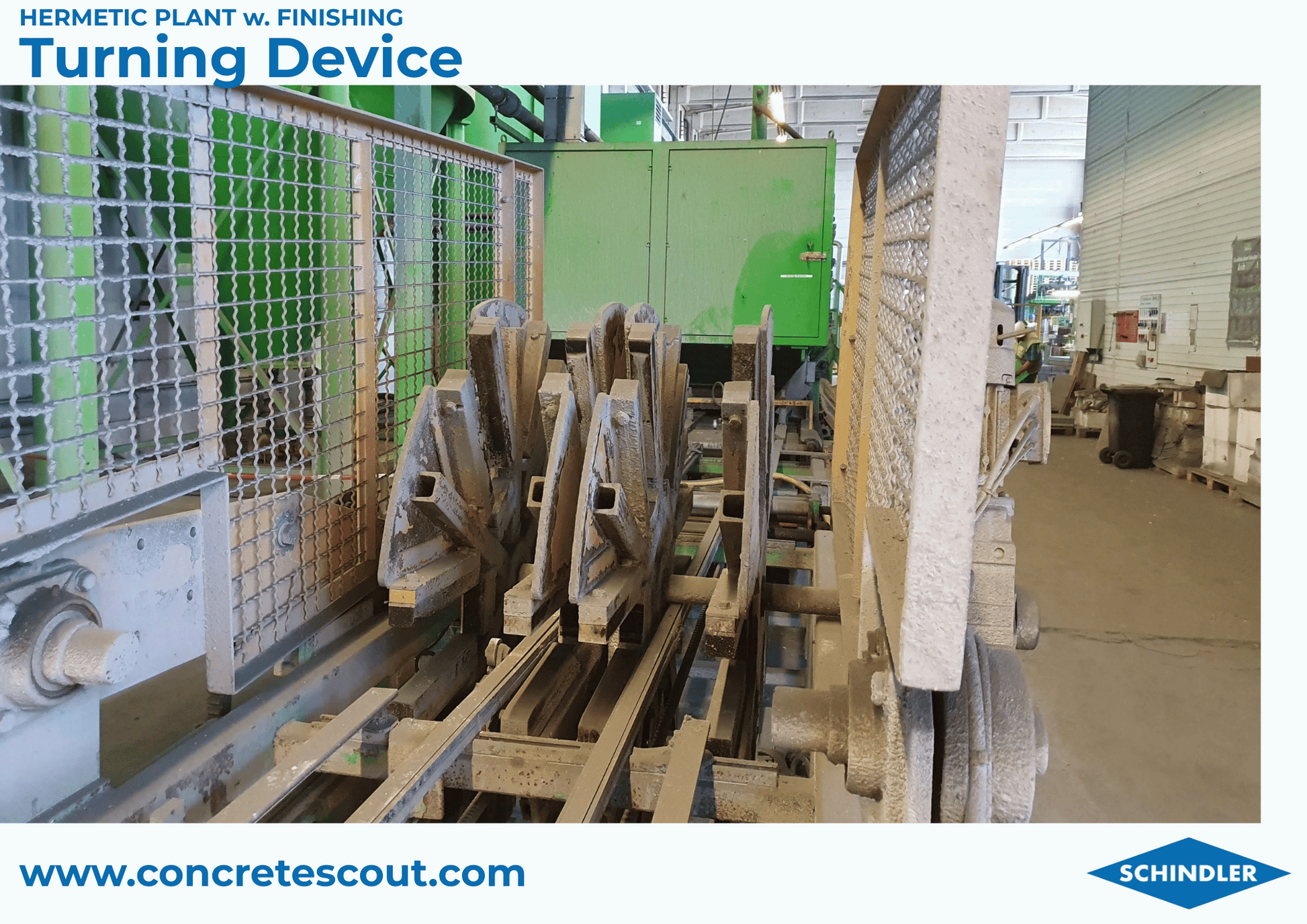

Toothed Belt Conveyor with Slab Turning Device
22.
Curved Roller Conveyor
23.
Accumulating Conveyor
24.

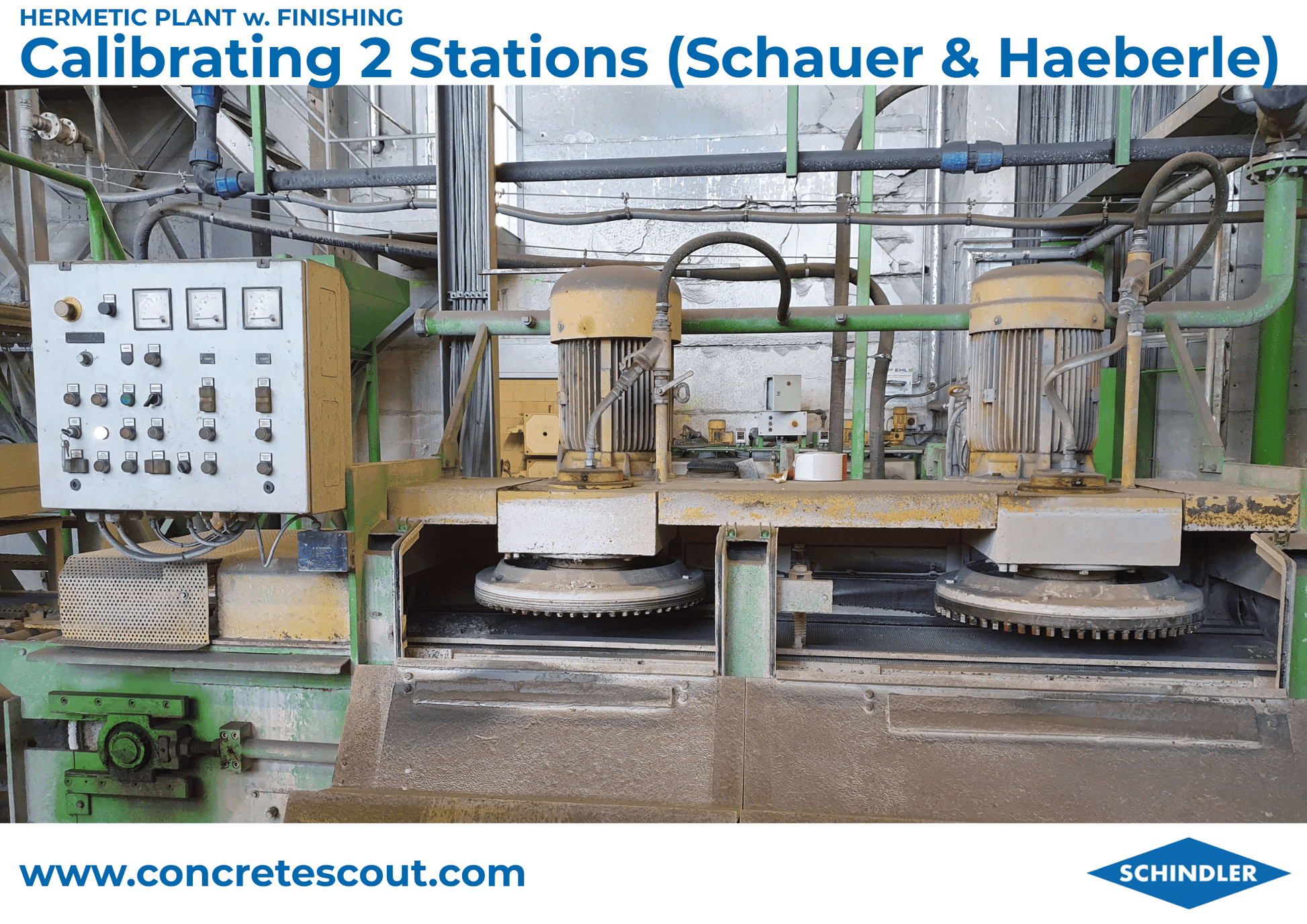

Calibrating Machine 2 Station (Schauer & Haeberle)
25.
Toothed Belt Conveyor with Slab Turning Device
27.
Accumulating Conveyor
29.

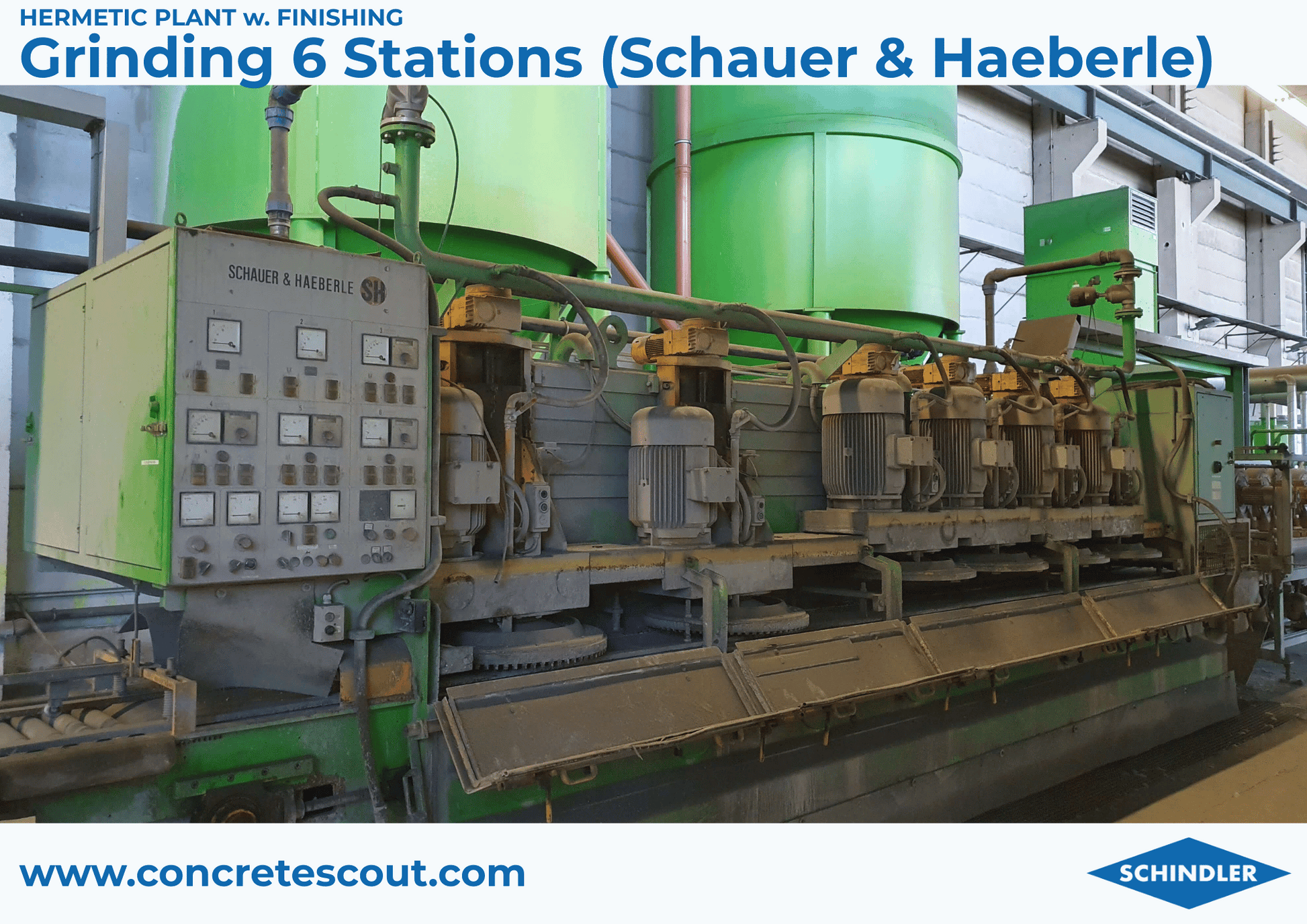

Grinding Machine 6 Station (Schauer & Haeberle)
30.
Electrical Control for Calibrating and Grinding Machine
